Alloy 20
- UNS N08020
- W.NR. 2.4660
- 20CB-3®, Carpenter 20®, Incoloy® 20
- ASTM B463, B464, B473, B366, A240
- ASME SB 463, SB 464, SB 473, SB366, SA 240
- NACE MR0175
Other common names: Carpenter® 20, 20Cb-3®
Alloy 20, also known as Carpenter® 20, is a nickel-iron-chromium austenitic alloy that was developed for maximum resistance to acid attack, specifically sulfuric acid. This superalloy has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals containing chlorides and sulfuric, phosphoric, and nitric acids. It also contains niobium for stabilization against sensitization and resultant intergranular corrosion.
Although originally designed for use in sulfuric acid related industries, Alloy 20 is now a popular choice for a wide variety of industries including the chemical, food, pharmaceutical, and plastics industries. In addition, this superalloy is used in heat exchangers, mixing tanks, metal cleaning and pickling equipment, and piping. Carpenter 20® combines excellent corrosion resistance with elevated mechanical properties and relatively easy fabrication.
There has long been a debate on whether Carpenter® 20 is a stainless steel or a nickel alloy because the nickel content is right on the border of defining it as one way or the other. So, depending on who you talk to this alloy may be referred to as alloy 20 Stainless Steel or as a nickel alloy. Either way it is still great for corrosion resistance.
In what forms is Alloy 20 Available at Mega Mex?
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)

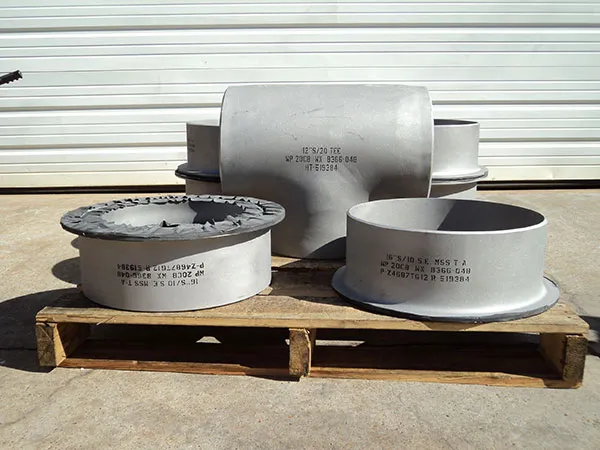

- Flanges
- Fittings
- Elbows, tees, stub-ends, returns, caps, crosses, reducers, pipe nipples, etc.
- Welding Wire (AWS Classifications: ER320LR and E320LR-16)
What are the characteristics of Alloy 20?
- Excellent general corrosion resistance to sulfuric acid
- Excellent resistance to chloride stress corrosion cracking
- Excellent mechanical properties and fabricability
- Minimal carbide precipitation during welding
- Excels in resisting corrosion to hot sulfuric acids
Chemical Composition, %
| Ni | Fe | Cr | Cu | Mo | Nb | C | Mn | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|---|
|
32.00-38.00 |
Balance |
19.0-21.0 |
3.0-4.0 |
2.0-3.0 |
8xC-1.0 max |
.07 max |
2.0 max |
.045 max |
.035 max |
1.0 max |
In what applications is Alloy 20 used?
- Synthetic rubber manufacturing equipment
- Processing of pharmaceuticals, plastics and organic and heavy chemicals
- Tanks, piping, heat exchangers, pumps, valves, and other process equipment
- Acid cleaning and pickling equipment
- Chemical process piping, reactor vessels
- Bubble caps
- Petrochemical process equipment
- Food and dye production
ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting |
|---|---|---|---|---|---|---|---|
|
B729 |
B464 |
B729 |
B468 |
B463 |
B473 |
B462 |
B366 |
Mechanical Properties
Annealed Material
| Form | Tensile Min. | Yield Min. (.2% offset) | Elongation Min. | Reduction of Area Min. |
|---|---|---|---|---|
|
Bar (hot or cold finished) |
80 ksi |
35 ksi |
30% |
50% |
|
Sheet/Plate |
80 ksi |
35 ksi |
30% |
- |
*Incoloy® is a registered trademark of Special Metals Corporation group of Companies.
*Carpenter® and 20CB-3® are registered trademarks of Carpenter Technologies
